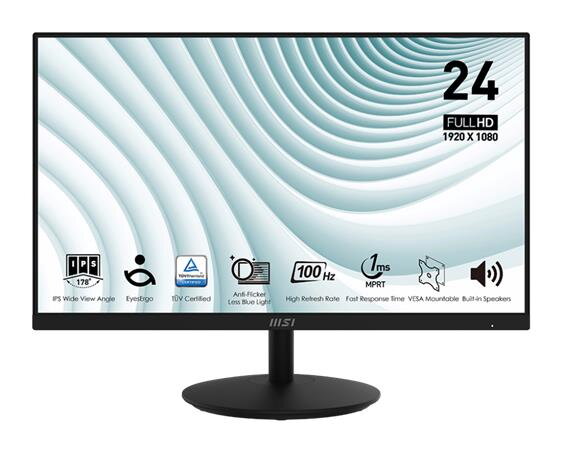

MSI monitor PRO MP242A 23,8" IPS/FHD/100Hz/1ms/HDMI/DP/VGA/černá

MSI monitor PRO MP242A 23,8" IPS/FHD/100Hz/1ms/HDMI/DP/VGA/černá

MKT Spec PRO MP242A
Website Name PRO MP242A
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 23.8" (60cm)
Active Display Area (mm) 527.04(H)x296.46(V)
Curvature Flat
Panel Type IPS
Resolution 1920x1080 (FHD)
Pixel pitch (mm) 0.2745(H)x0.2745(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48 ~ 100Hz
HDR (High dynamic range) NA
SDR Brightness (nits) 300
HDR Brightness (Peak nits) NA
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 65.8~136.3 KHz (H) / 48~100 Hz(V)
Refresh Rate 100HZ
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) 14ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 96%/80%
NTSC (CIE1931 area percentage/overlap) 76%/72%
sRGB (CIE1976 area percentage/overlap) 110%/97%
sRGB (CIE1931 area percentage/overlap) 108%/97%
Adobe RGB (CIE1976 area percentage/overlap) 95%/85%
Adobe RGB (CIE1931 area percentage/overlap) 80%/75%
DCI-P3 (CIE1976 area percentage/overlap) 88%/85%
DCI-P3 (CIE1931 area percentage/overlap) 80%/79%
Rec.709 (CIE1976 area percentage/overlap) 110%/97%
Rec.709 (CIE1931 area percentage/overlap) 108%/97%
Rec.2020 (CIE1976 area percentage/overlap) 64%/64%
Rec.2020 (CIE1931 area percentage/overlap) 57%/57%
Quantum Dot Film NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 16.7M
Color bit 8 bits (6 bits + FRC)
Note_DP 1920 X 1080 (Up to 100Hz)
Note_HDMI 1920 X 1080 (Up to 100Hz)
Note_DVI N/A
I/O Ports
HDMI 1
HDMI version 1.4b
HDMI HDCP version 1.4
DisplayPort 1
DisplayPort version 1.2a
DisplayPort HDCP version 1.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) NA
DVI NA
D-Sub 1
Line-in 1
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker 2
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 18
Annual Energy Consumption (KWh) NA
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating E
Adapter's KC safety Number NA
Power Cord Type C5
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power NA
Warranty
Warranty 24M
Design
Adjustment (Tilt) -5° ~ 23°
Adjustment (Swivel) NA
Adjustment (Height) NA
Adjustment (Pivot) NA
Toolless Adjustable Stand
VESA Mounting 100x100mm
Frameless Design Yes
KVM
Console Mode
HDMI CEC
Firmware Update
Carton
Carton Item (SG14) SG14-M1S018A-PMT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 42
Q'ty/20cy (by air) pcs 420
Q'ty/40cy (by air) pcs 882
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1337
Net Weight (by air) kg 193.2
Gross Weight (by air) kg 214.44
pallet Q'ty (by sea) pcs 70
Q'ty/20cy (by sea) pcs 700
Q'ty/40cy (by sea) pcs 1470
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2143
Net Weight (by sea) kg 322
Gross Weight (by sea) kg 343.24
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 539.5 x 219.7 x 405.9
Product Dimension with Stand (WxDxH) (inch) 21.24 x 8.65 x 15.98
Product Dimension without Stand (WxDxH) (mm) 539.5 x 48.0 x 323.1
Product Dimension without Stand (WxDxH) (inch) 21.24 x 1.89 x 12.72
Stand Dimension (WxDxH) (mm) 219.7 x 219.7 x 150.3
Stand Dimension (WxDxH) (inch) 8.65 x 8.65 x 5.92
Weight (Net kg) 3.2
Weight (Net lbs) 7.05
Weight Without Stand (kg) 2.7
Weight Without Stand (lbs) 5.95
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 60 x 14 x 40
Inside Carton Dimension (WxDxH) (inch) 23.62 x 5.51 x 15.75
Outer Carton Dimension (WxDxH) (cm) 61.5 x 15.5 x 42.5
Outer Carton Dimension (WxDxH) (inch) 24.21 x 6.1 x 16.73
Weight (Gross kg) 4.6
Weight (Gross lbs) 10.14
Accessories
DisplayPort Cable 0
DisplayPort Cable Version
HDMI Cable 1
HDMI Cable Version
DVI Cable 0
DVI Cable Version
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Pro
Segment Name PRO
Segment Name2 MP242
Segment Name3 MP242A
Barcode Info
EAN 4711377031790
